EPC Tester

EPC Tester

Hammer the Cost! Save up to 70% on 4G Validation cost

Features

epctester
  • EPC tester is a tool to test EPC (Evolved Packet Core)
  • EPC tester simulates UE + E-UTRAN environment
  • EPC tester is used to test effectively the EPC's User & Control planes
  • It is a software-centric solution designed to test in a multiuser, multi-eNB configurations
  • Enable to perform detailed traffic run analysis
  • Session-level analysis at LTE control plane; and throughput & QoS analysis at LTE user plane
  • LTE protocols: S1-AP/S1-C, S1-U, GTPU, SCTP, NAS based on 3GPP Rel 9 & 10 and simulated bearer applications
  • Enables easy addition of new FSMs and test suites

Hardware

Networking

IPv4
VPN (IPsec Tunnel mode)
VLAN

Interface

10 GB SFP+

Electrical

110 to 230v AC,
1 A

Mechanical

1U X86

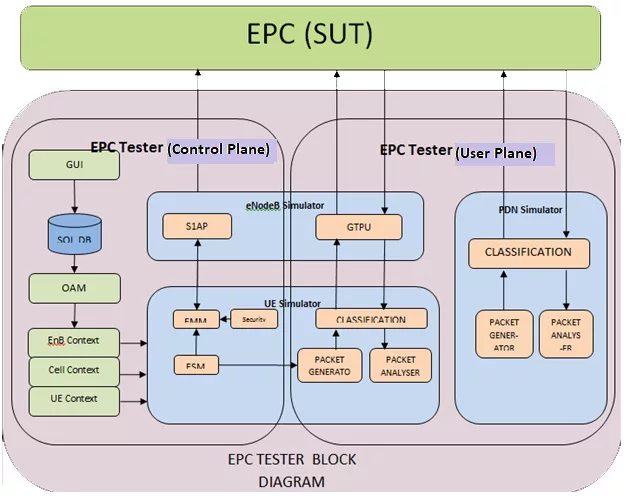

EPC (SUT)

EPC Tester Consist of
  • UE , eNode-B & PDN Simulator
  • Works on Windows / Linux OS
  • Data base - SQL DB
  • EPC tester GUI with following configurable parameters : eNBs, Cells UEs (single user/Multi user)
  • EPC tester has Prepackaged Test Suite with
  • * Test procedures with MSC (Message sequence chart)
  • * Test script/Scheduler
  • * Enable Logs (S1AP, GTP-U & Wireshark)

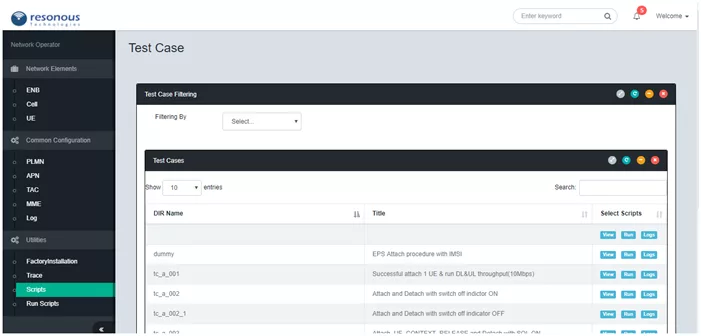

EPC tester GUI

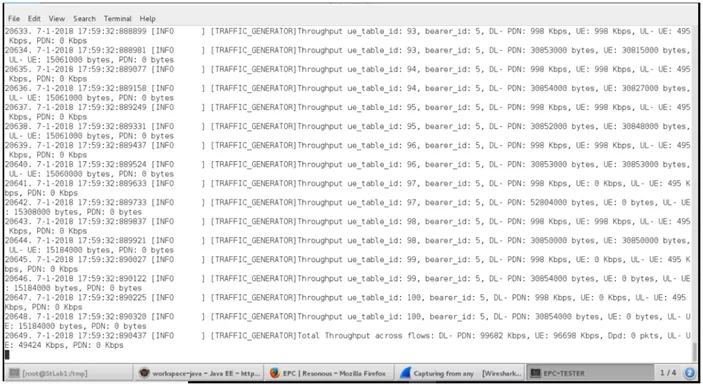

EPC Tester Terminal:

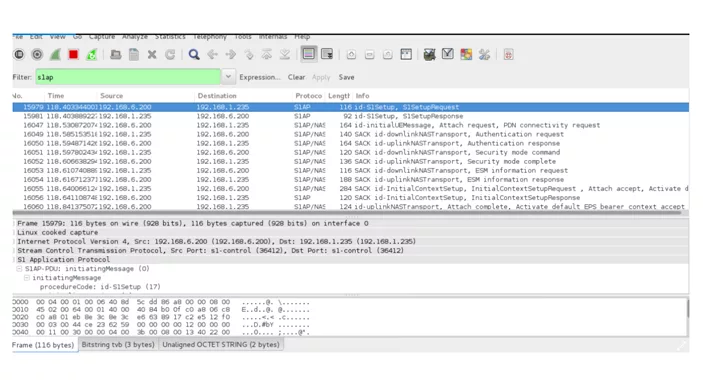

Wireshark Log:

EPC Performance can be monitored on NMS while testing EPC through EPC tester

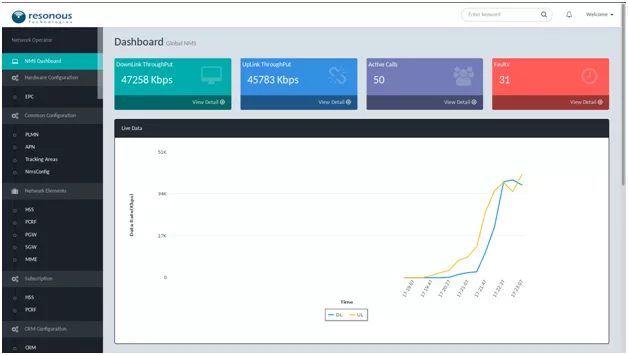

NMS Dashboard:

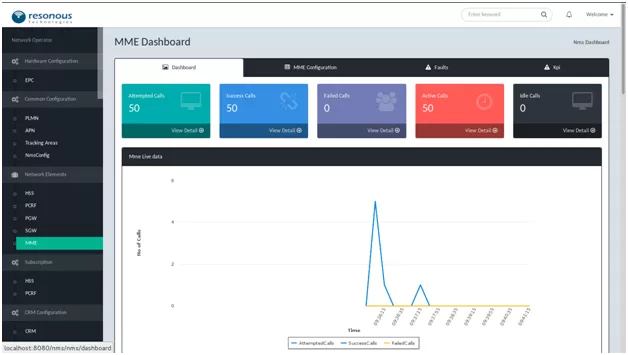

MME Dashboard :

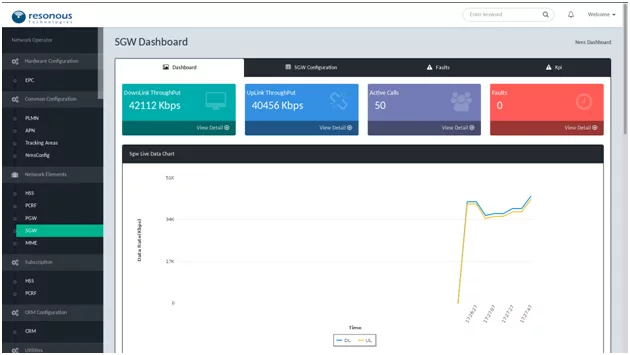

SGW Dashboard:

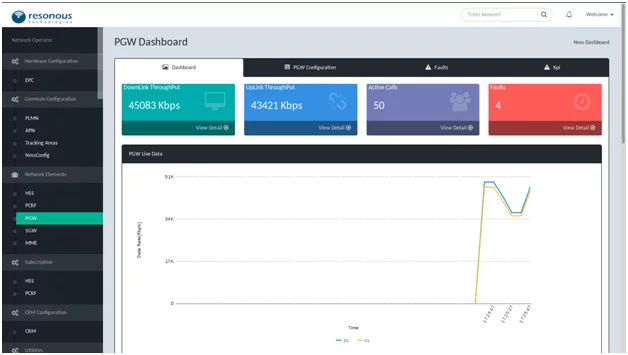

PGW Dashboard :
